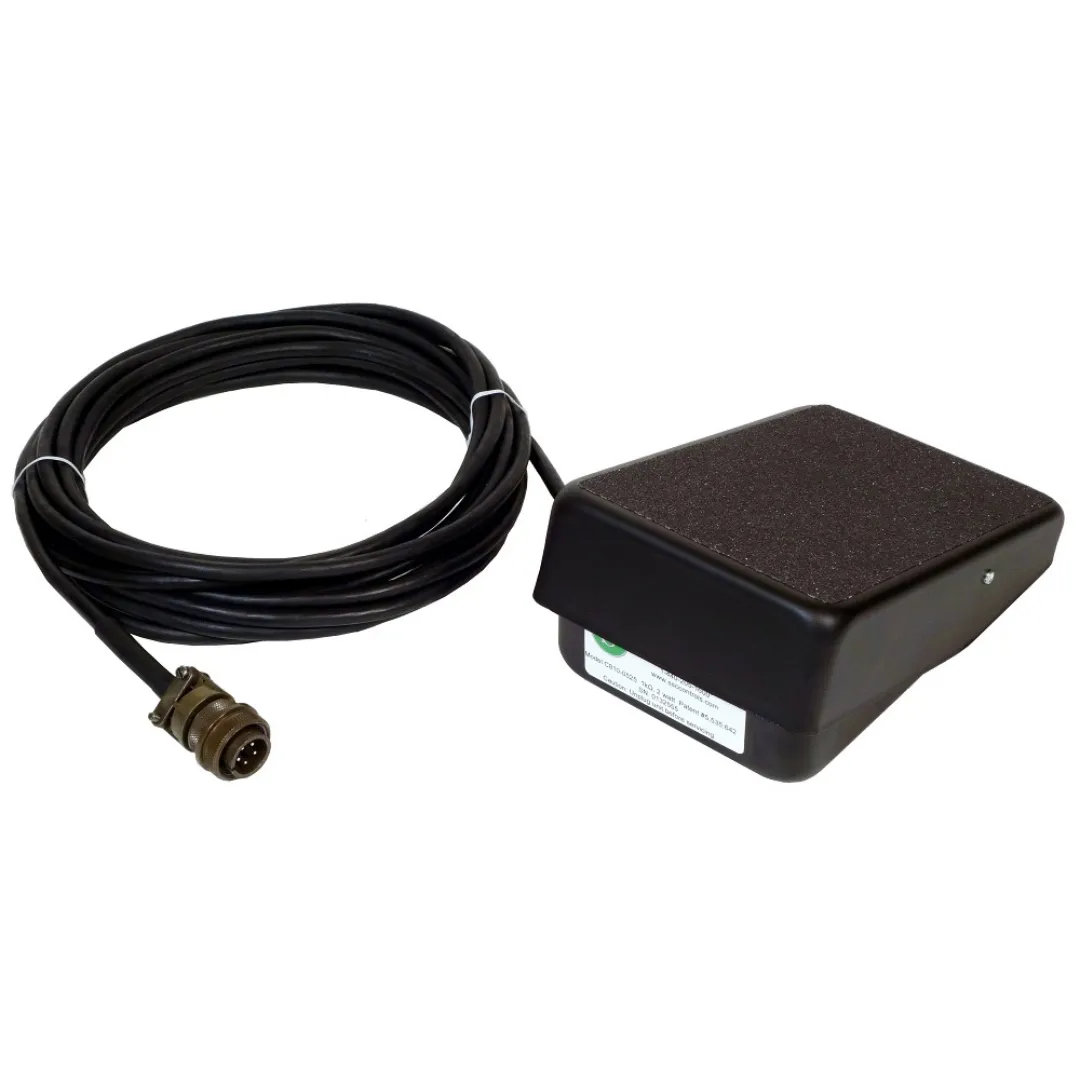

SSC Controls Model C810-0525 for Miller® Style (5 Pin)
The C810 TIG welding remote foot controls are industrial workhorses with high-performance characteristics. The C810-0525 are designed for use with older Miller® and TIG welding machines.
Designed for the pro, these rugged and dependable controls provide a tremendous value. The patented design improves low-current welding while providing precision arc control.
The design features a durable 16-gauge steel case, oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the postflow cycle. Includes a 25-foot cable and 5-pin plug.
- Patented design is tested to one million lifecycles.
- Designed and manufactured under a quality system certified to ISO 9001 requirements.
- C810-0525 Replaces Miller RFCS-5 (p/n 043716) and RFCS-5 HD (p/n 195218). For Miller solid-state power sources prior to serial number JK674521
- Made in USA
- Part Number: C810-0525
| Model: | C810-0525 |
| Cable Length: | 25 ft. (7.62 m) |
| Connection: | 5-Pin Male |
| Dimensions, L x W x H, in. (cm.): | 8.8" x 5.5" x 4.1" (22.4cm x 14.0cm x 10.2cm) |
| Weight, pounds (kg.): | 5.8 lb (2.6 kg) |
| Finish: | Black, powder paint |
